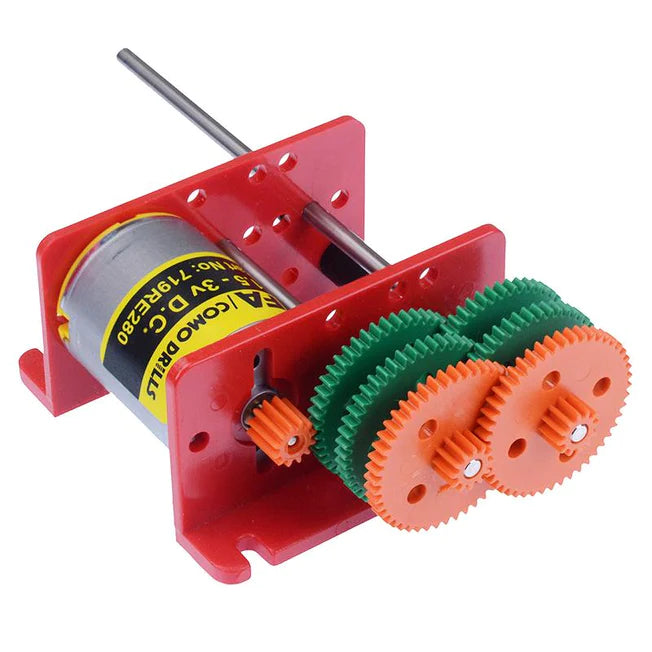

MFA 920D Multiratio Motor/Gearbox (Unassembled-includes RE280Motor)

MFA 920D Multiratio Motor/Gearbox (Fitted with RE280Motor unassembled)

The 920D/A is a fully assembled motor and gearbox featuring various gear ratios and DC motor with an operating voltage between 1.5 to 3V. The motor can be powered using a battery or transformer making it suitable for various uses including powering models and robots.

• Unassembled gear ratios
• Gear ratios: 4:1, 16:1, 64:1, 256:1, 1024:1, 4096:1
• Motor input voltage: 1.5-3VDC
• No load speed: 9200rpm
• No load current: 0.155A
• 3mm output shaft diameter
•

• Specification

  No load current	0.155A
  No load speed	9200rpm
  Operating voltage	1.5-3V
  Rated load current	0.85A
  Rated load speed	7200rpm
  Rated voltage	3V
  Shaft diameter	3mm

Current Rating 850 mA
Operating Supply Voltage 3 V
Power Rating 1.6 W
Dimensions
Length 52 mm
Width 110 mm
Compliance
RoHS Compliant
