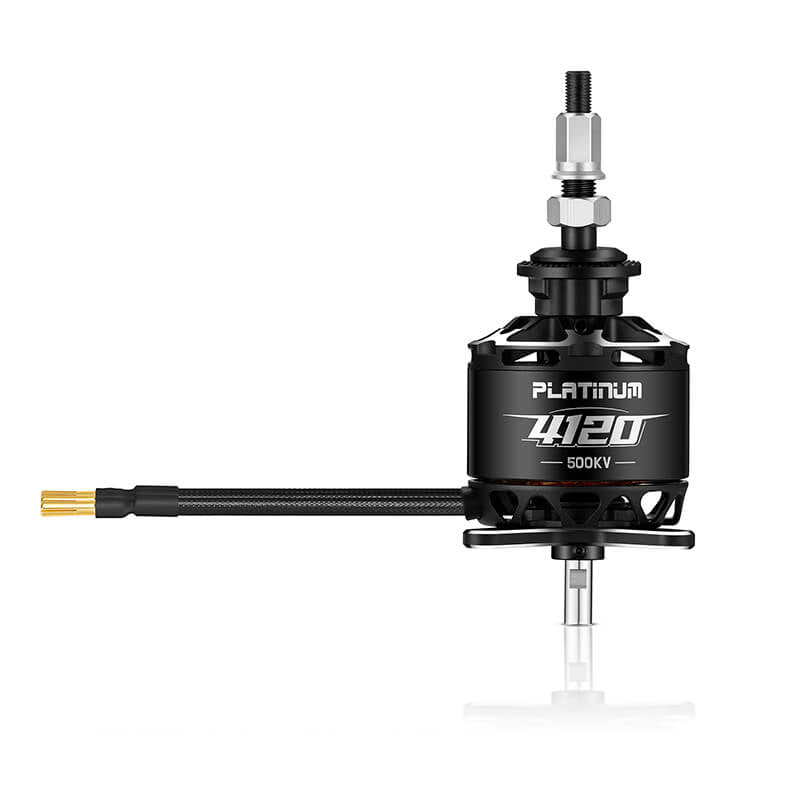

HOBBYWING PLATINUM 4120SL 500KV FIXED WING MOTOR
HOBBYWING PLATINUM 4120SL 500KV FIXED WING MOTOR will be backordered from our supplier. Delivery will take between 3-5 working days & orders will be despatched once completed.
Description
Description
Specifications
Motor Size: Φ49.5 *72.3mm
Stator Size: Φ40.6*20mm
Stator Process: High standard silicon steel sheet,180? high temperature resistance paint-coat
Enamelled Wire: 200?
Props Mounting Dimensions: Φ15mm-3*M3
Motor Mounting Dimensions: Φ30mm-4*M4
Slot & Pole: 12N14P
Dynamic Balance: ≤10mg
Bearing: 696ZZ
Motor Axle Diameter: Φ6mm
Isolation Test: 500V AC high voltage resistance test
KV: 500
Battery (LiPo): LiPo-6S
No-load Current: 2.6A/22.2V
Maximum Current (Non-hermetic Ambient Temperature ≤ 25?: 102.7A/42s
Max Power: 2276W/42s
Max Thrust: 7.41kg
Resistance: 17mΩ
Wire Size: Enamelled Wire Output
Wire Length: 90mm
Weight (With Wire): 310g
Recommended ESC: PLATINUM 120A V4, PLATINUM 150A V5
Recommended Propeller: 6S:15X6E,15X8E, 16X6E,16X8E
