HK Models | SKU:
NTM3530-1000
Sold out

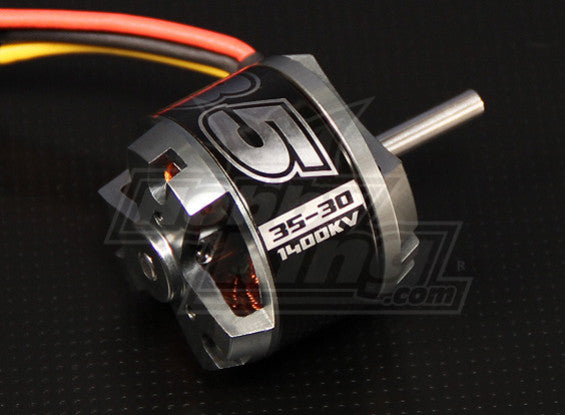

NTM Prop Drive Series Brushless Motor 35-30A 1400kv / 560w
£19.99
Unit price
/
Unavailable
Tax included
Shipping calculated at checkout.
NTM Prop Drive Series Brushless Motor 35-30A 1400kv / 560w will be backordered from our supplier. Delivery will take between 3-5 working days & orders will be despatched once completed.
Sign up to be the first to know when this product is back in stock!
Description
Description
NTM Prop Drive motors are rock-solid performance outrunners with tight windings, quality bearings, correctly rated magnets, balanced stator and flux rings plus they are QC checked at 14 points, from material processing all the way through to final dyno test.

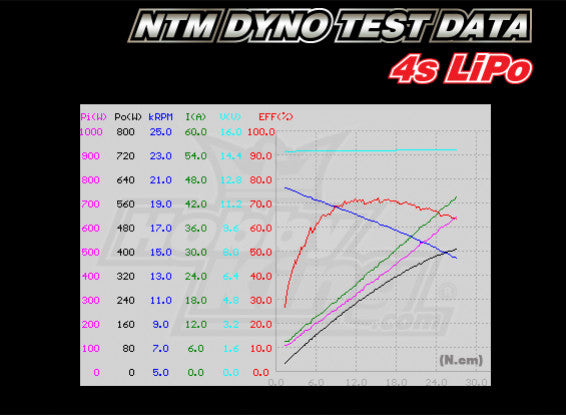

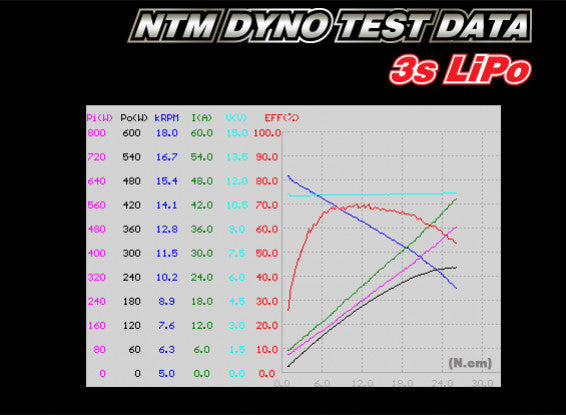

Because we design and build these motors completely in-house (from 3D/2D drawing to materials sourcing, machining, balancing, final assembly and dyno) we can completely control production and ensure product consistency from design right through to shipping the product to you. The removal of middle-men has meant we can drive better value to the market and retail these motors at factory(our) prices! All performance figures are real and tested on our own motor dynos.
Our QC engineer checks and balances each motor before shipping to the HobbyKing.com warehouse.
Specs:
Model: NTM Prop Drive Series 35-30A 1400kv
Kv: 1400rpm/v
Turns: 5
Max current: 37A
Max Power: 420W @ 12v (3S) / 560W @ 15v (4S)
Shaft: 4mm
Weight: 88.3g
ESC: 50A
Cell count: 3s~4s Lipoly
Bolt holes: 18.9mm & 25mm
Bolt thread: M3
Connection: 3.5mm Bullet-connector
Because we design and build these motors completely in-house (from 3D/2D drawing to materials sourcing, machining, balancing, final assembly and dyno) we can completely control production and ensure product consistency from design right through to shipping the product to you. The removal of middle-men has meant we can drive better value to the market and retail these motors at factory(our) prices! All performance figures are real and tested on our own motor dynos.
Our QC engineer checks and balances each motor before shipping to the HobbyKing.com warehouse.
Specs:
Model: NTM Prop Drive Series 35-30A 1400kv
Kv: 1400rpm/v
Turns: 5
Max current: 37A
Max Power: 420W @ 12v (3S) / 560W @ 15v (4S)
Shaft: 4mm
Weight: 88.3g
ESC: 50A
Cell count: 3s~4s Lipoly
Bolt holes: 18.9mm & 25mm
Bolt thread: M3
Connection: 3.5mm Bullet-connector
