Hitec HS-7245MH High Voltage Premium Digital Servo

Watch out, here it comes! Our new high voltage, coreless HS-7245MH servo delivers exceptional speed and torque in a compact package. Built with an efficient coreless motor optimized for 7.4V operation and heavy-duty metal gear train with dual ball bearings, this high-end mini servo delivers unbridled performance just like its brother, the HS-7235MH.Whether you are flying mid-size gas and electric airplanes, 500-550 electric helis, or driving 1/12th scale on-road racers and 1/18th scale rock crawlers, the full-size muscle of this servo will make you the master of your RC domain.Exceeding Your Expectations Is What We Do!

Features
Our Best High Speed Mini Servo
Efficient Coreless Motor
Heavy Duty Metal Gear Train
Dual Ball Bearing
7.4v 2-Cell LiPo Capability
G2.5 Fully Programmable Digital Circuitry
Programmable Functions
End Point Adjustments
Direction
Fail Safe
Dead Band
Speed (Slower)
Overload Protection
Resolution
Data Save / Load
Program Reset
Accessories
Metal Gear Set
Link
Metal / Plastic 1st Gear Set
Link
Plastic Case Set
Link
Applicable Horns
HS-7245MH Servo Specifications
Performance Specifications
Operating Voltage Range (Volts DC) 6.0V ~ 7.4V
Speed (Second @ 60°) 0.13 ~ 0.11
Maximum Torque Range oz. / in. 72 ~ 89
Maximum Torque Range kg. / cm. 5.2 ~ 6.4
Current Draw at Idle 12 mA
No Load Operating Current Draw 190 mA
Stall Current Draw 1,600 mA
Dead Band Width 2 µs

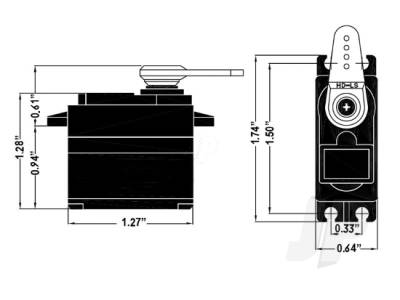

Physical Specifications
Dimensions (Inches) 1.28 x 0.66 x 1.29
Dimensions (Metric) 32.4 x 16.8 x 32.8
Weight (Ounces) 1.20
Weight (Gram) 34.0
Circuit Type G2.5 Programable Digital
Motor Type Coreless Metal Brush
Gear Material Metal
Bearing Type Dual Ball Bearing
Output Shaft (type / Ømm) Standard 24
Case Material Plastic
Dust / Water Resistance N / A
Connector Gauge (AWG) / Strand Count 22 / 60
