Graupner | SKU:
G7952
14% off
Graupner 7952 – Servo des 806 BB mg (bagged)
£29.99
£34.99
Unit price
/
Unavailable
Tax included
Shipping calculated at checkout.
Graupner 7952 – Servo des 806 BB mg (bagged) will be backordered from our supplier. Delivery will take between 3-5 working days & orders will be despatched once completed.
Description
Description
Graupner servos represent a product line which provides the right servo for almost every application with a wide range of specifications. Different sizes, gear designs, actuating forces and actuating times designed for the beginner to the competition pilot.
- C Series: proven analogue servos from JR, proven a thousand times over
- DS series: digital servos from JR, extremely precise neutral position and smooth control characteristics due to 13 bit ACD system with 5,900 steps
- DES series: low-cost digital servos, for universal applications in model making with high-quality Atmel microcontroller
- HVS series; High-Voltage servos for direct connection to 2-cell Lipo batteries
- HBS series: High-Voltage - Brushless servos for direct connection to 2-cell lipo batteries, with incomparable acceleration behaviour
- HVC / HCM series: High-Voltage - Corless Servos for direct connection to 2-cell Lipo batteries, highest production quality, some with metal housing (HCM)
- C Series: proven analogue servos from JR, proven a thousand times over
- DS series: digital servos from JR, extremely precise neutral position and smooth control characteristics due to 13 bit ACD system with 5,900 steps
- DES series: low-cost digital servos, for universal applications in model making with high-quality Atmel microcontroller
- HVS series; High-Voltage servos for direct connection to 2-cell Lipo batteries
- HBS series: High-Voltage - Brushless servos for direct connection to 2-cell lipo batteries, with incomparable acceleration behaviour
- HVC / HCM series: High-Voltage - Corless Servos for direct connection to 2-cell Lipo batteries, highest production quality, some with metal housing (HCM)
Technical data
| Bearing: | •• |
|---|---|
| Servo Speed sec./60° (4,8V) HV: | 0,16 |
| Servo Speed sec./60° (6V) HV: | 0,13 |
| Servo Torque kg/cm (4,8V) HV: | 8 |
| Servo Torque kg/cm (6V) HV: | 9,5 |
| Gearbox Type: | Metal |
| Weight (g): | 52,5 |

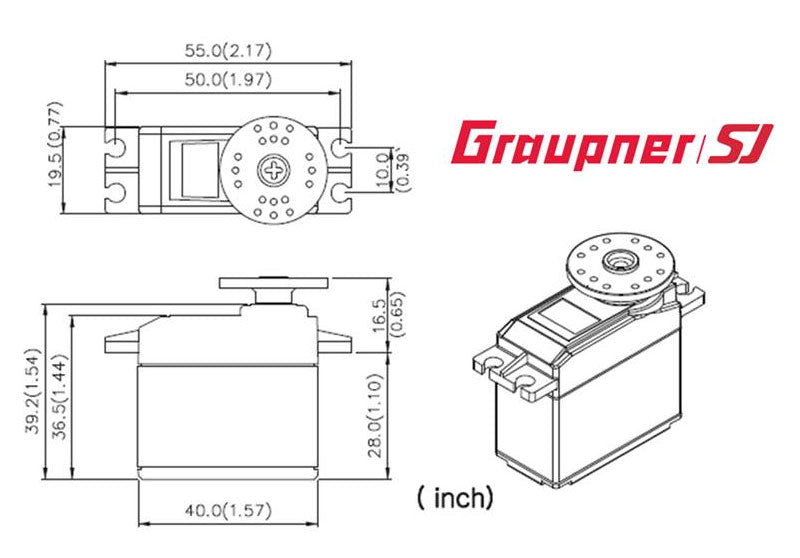

| Length (mm): | 40 |
| Wide (mm): | 19,5 |
| Height (mm): | 39,2 |
| Servo type: | Digital |
| Gear tooth: | 25 |
| Betriebspannung (V) HV: | 4,8 - 6,0 |
INCLUDES
- DES 806 BB Standard Digital Servo
- Horn set
