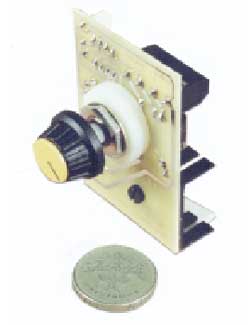

MFA Speed Regulator - Panal Mounted 919D2P

Panel Mounted Variable Speed Voltage Regulator - Part No. 919D2P

* Panel Mounted with external control knob.

* Allows infinitely variable R.P.M. to be set on MFA/Como Drills. 919D, 927D, 918D (12v), 940D, 941D & 950D series gearboxes and motors.

* Operates from inputs of 6-15 volt.

* Output 0 - input voltage.

* Pulse width modulated provides torque maintenance and proportional output control.

* Small - compact - robust construction for versatility and reliable service.

Min Input 6 volts
Max Input 15volts
Min Output 0 volts
Dims. 34 x 27 x 18 mm
Max Output 15 volts
Weight 30 grams approx.
Loading 3 amps continuous
5 amps peak only.
Insulated spade connectors fitted on input cables
Input & output cables 21cm
Supply and output cables are trimmed to 21 cm to meet current EMC regulations.
Edge to edge frequency, min 1136 Hz, max 1250 Hz, average 1200 Hz. Mark to space varies motor speed.
