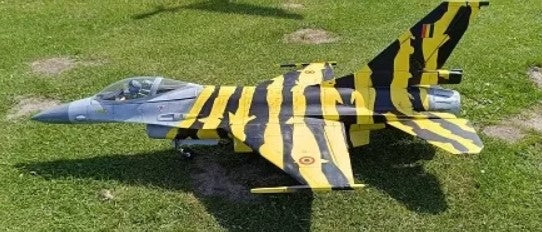

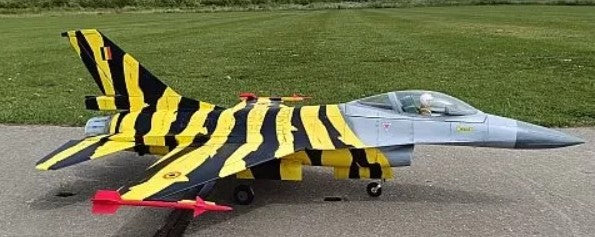

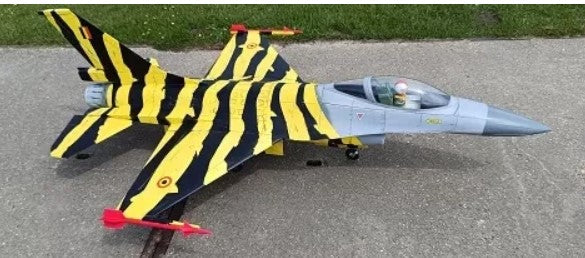

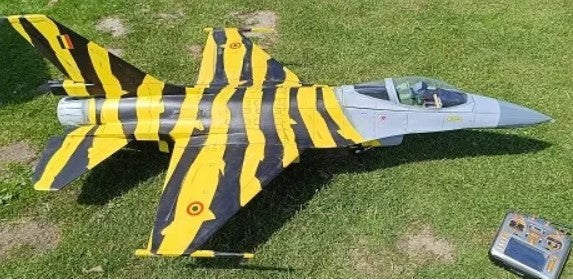

RBC F16 Dirty Tiger Kit

RBC F16 Dirty Tiger Kit

Designed for 100mm Midi fan Evo edf and 8 cells 5000 (2 packs HV5500)
Why a 100mm fan ?
The 100mm gives a lot of thrust and not to much speed but just right
We advise the Midi Fan Evo 100mm with hetrc edf 700-75-1400
We are running a test with some cheater holes in the F16 fuselage, to shorten the take off
The F16  is easy to fly but not for beginners or beginner builders
F16 JP scale retract former set if you decide to buy the jp scale F16 retract set (turbines rc in france)
note that the set weights a 800gr, so you need more power , eg 10S 0r 12S

The F16 is a lot of work to build , but very rewarding

In the instructions download are many 3d print files for the extra parts

Full pictures and instructions download here

A flight movie here

Wingspan :1185mm
Wingarea :45dm
Length :1758mm

Our flying weight 5,kg
2 packs HK Bolt Hv 4S5500 (lighter pack weight)
Bec from flight pack for retracts
1 nimh 2000 pack for receiver
wemotec midi fan evo 100mm with hetrc edf 700-68-1400

6 Channel , Tailerons,elevator,Throttle,Retracts, flaps (not neccesary but helpfull)
,nosewheel steering,rudder or use classic ailerons
Kit Includes:
Photos and Instructions download
Full Size Rolled Cad Plans With All Parts Shown in color
Build steps on the drawing with many 3d explaining pictures
Vacuformed Canopy,Nosecone,Inlet duct,Ducting,Paper and Outlet ducting
We have the option for a stronger quality intake duct from Petg , more stiff
3D print files for gun ,seat ,exhaust tube ,drop in fan system ,rockets
All wood and sheeting to make the F16 ,5 sheets of balsa  10 sheets of lite ply
Some sheets are Lasercut most of them fine CNCcut
Spruce,ply and balsa stringers
Carbon rods for the tailerons and cnccut horns and rings for the connection
175 cnc cut ply and balsa  parts There is no hardware  in the F16 like hinges and horns etc etc
Required to Complete:
Any 8 Channel Radio
Light weight Receiver:
Servos: About 13 grams metal gear 4x and 30gr metal gear 2x
wemotec midi fan evo 100mm with hetrc edf 700-75-1400
use our drop in extensions or print them yourself
Battery:4S lipo 5000ma 2x
Medium CA glue, large bottle

Our flying weight 5,kg
2 packs HK Bolt Hv 4S5500 (lighter pack weight)
Bec from flight pack for retracts
1 nimh 2000 pack for receiver
wemotec midi fan evo 100mm with hetrc edf 700-68-1400

6 Channel , Tailerons,elevator,Throttle,Retracts, flaps (not neccesary but helpfull)
,nosewheel steering,rudder or use classic ailerons
Kit Includes:
Photos and Instructions download
Full Size Rolled Cad Plans With All Parts Shown in color
Build steps on the drawing with many 3d explaining pictures
Vacuformed Canopy,Nosecone,Inlet duct,Ducting,Paper and Outlet ducting
We have the option for a stronger quality intake duct from Petg , more stiff
3D print files for gun ,seat ,exhaust tube ,drop in fan system ,rockets
All wood and sheeting to make the F16 ,5 sheets of balsa  10 sheets of lite ply
Some sheets are Lasercut most of them fine CNCcut
Spruce,ply and balsa stringers
Carbon rods for the tailerons and cnccut horns and rings for the connection
175 cnc cut ply and balsa  parts There is no hardware  in the F16 like hinges and horns etc etc
Required to Complete:
Any 8 Channel Radio
Light weight Receiver:
Servos: About 13 grams metal gear 4x and 30gr metal gear 2x
wemotec midi fan evo 100mm with hetrc edf 700-75-1400

Battery:4S lipo 5000ma 2x
Medium;CA glue, large bottle
