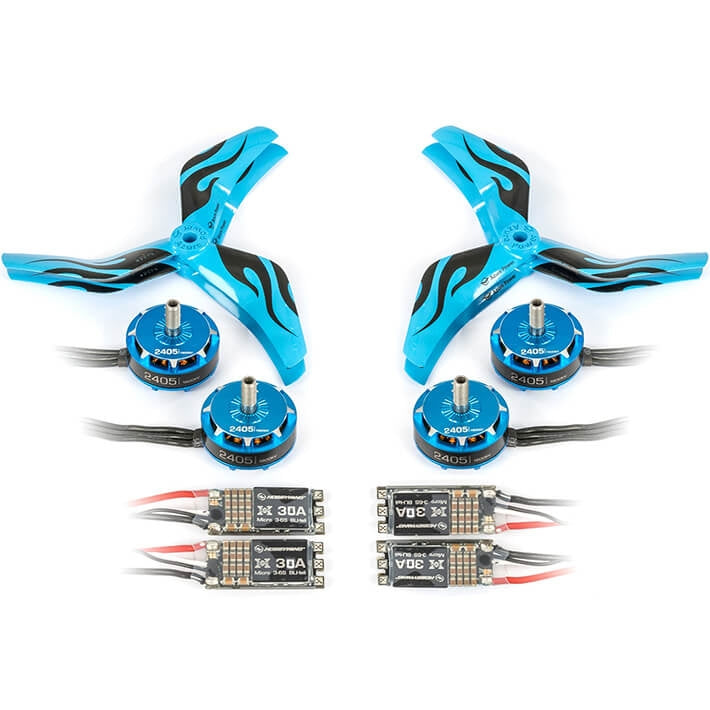

HOBBYWING FPV POWER SYSTEMM2405-2250KV PROP

The Hobbywing XRotor 2405 series of FPV Racing Motors feature a handful of great design features that are packed together that offer nothing but incredible performance, and excellent reliability.

Featuring high strengthCNC machined aluminum allow frame that incorporates a cross beam structure, & high previsision hollow alloy steel shaft, crash resistance and overall motor durability is a critical design choice. Offering an extra wide but short stator (24mm wide, 5mm height), the disc type structure provides a lower center of gravity compared to other motors, which translates to improved response while in flight. A single piece eight bladed centrifugal fan cools the motor during operation.

Hobbywing FPV Power System Features:

• Small size combined with light weight for easy installation
• 24mm Stator Width; 5mm Stator Height - Low CG design
• Integrated locking teeth to secure prop even under prop strikes
• Integrated cooling fan design
• Aluminum Allow motor design - Incredible durability
• N54 High Strength Magnets
• 0.2mm Stator Laminations
• 4mm Thick Bearings
• 35.5g AUW

ESC Spec Check:

• LiPo Power Input: 2-4S
• Cont. Current: 30A
• Burst Current: 40A
• BEC Output: N/A
• Firmware: BLHeli-S A-H-5016.5
• Oneshot 125/42: Supported
• Multishot: Supported
• DShot150/300/600: Supported
• Size/Weight: 23.8x14.5x5.8mm / 6g

Motor Spec Check:

• KV: 2250kV
• Voltage Input: 3-4s LiPo
• No-Load Current (A/10V): 1.4A
• Motor Resistance: 0.047 Ohms
• Continuous Current: 25A - 420W
• Slot/Plot Count: 12/14
• Motor/Shaft Diameter: 30.8mm - 5mm
• Weight: 35.5g
