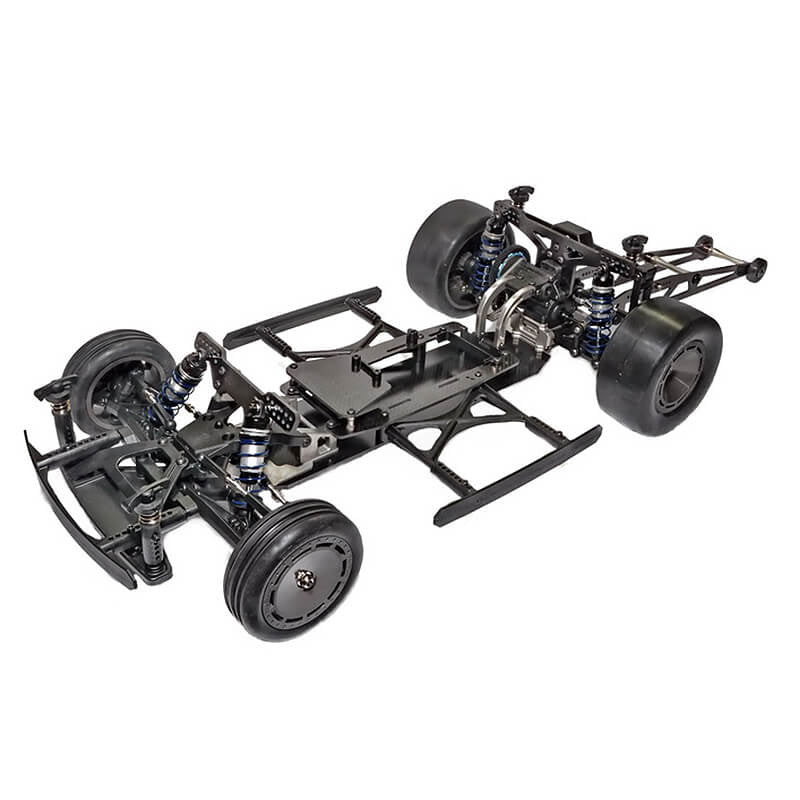

HOBAO HYPER EX10 1/10 2WD DRAG CAR PRO ARR w/o BODYELECTRICS

The HB-EX10 features a lightweight and rigid design which is made up of lots of carbon fiber and hardened anodized aluminium alloy parts in the overall structure for strength and overall weight reduction. The 3 gear Mid-Motor 3 gear box offers increased stability, traction and handling.

Features

• Mid-motor 3 gears design
• Lightweight and rigid design
• 3mm carbon fiber chassis and 4mm carbon fiber front/rear towers
• All metal gear transmission with hardened steel shaft
• Heavy duty metal sealed gear differential with 500K silicon oil
• High strength steel 3 gear transmission design (27T Idler gear, 51T Diff housing gear and 21T lay-shaft gear)
• 280mm long wheelie bar set with Carbon fiber arm and CNC Aluminum standoffs
• Height adjustable and fine-tuned, Tension arms with adjustable turnbuckles (Allows shock mounting of H40059 or H40125)
• Rear floating body mount set
• 3mm rear sway bar
• 12mm big bore aluminium shock with silicon oil (soft front springs/hard rear springs)
• Soft belted rear tire, 2.2”/3.0” made from natural rubber- IIR
• Front wheels with 26mm rubber tyres
• 10.5mm thick rear wheel hex
• Adjustable Carbon fiber battery mount set allows for fine-tune the battery position
• Spur gear 84T, Optional 94T-48P (Optional part HOP1-0059)
• Adjustable body support for front and side
• New design quick release body post
• New front bumper with weight adjustment (Optional part HOP1-0060)

Specifications

Power Source: Electric
Terrain: On-Road
Body Style: Drag
Scale Size: 1:10 Scale
Assembly Level:ARR*
Length:750mm
Width: 275mm
Wheelbase: 345mm
Weight:1400g
Drive: 2WD

* This vehicle comes Almost Ready to Run but requires electronics/motor and other items.

Required To Complete

• 1:10 scale electric motor
• Electronic speed control
• Pinion gear
• 2S LiPo battery
• Battery charger
• 2-channel surface transmitter
• 2-channel receiver
• Steering servo
• Body and paint
