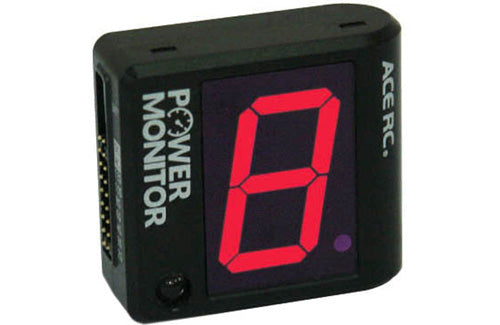

Tt Power Monitor

The ACE RC Power Monitor is an advanced device which monitors and indicates the amount of charge left in the LiPO and NiMH batteries real-time in the air. With large size and numerical display, you don't need to check and measure cell voltages by stopping your machine. The ACE RC Power Monitor provides a reverse polarity protection and a switch which selects direction of display by 180deg. Read easily, fly safely with ACE RC Power Monitor.

Visible Distance: Approx. 10 meters / 30 feet (depends on physical circumstances)

Dimension

42.5 x 39 x 16.5 mm
Weight

26g
Visible Distance

Approx. 10 meters / 30 feet (depends on physical circumstances)
Interface

1-inch 7-segment digital display
LED x 1
Position switch x 1
3-pin wafer x 1 (for power and signal)
2-pin Header x 9 (for battery selection, up to 12 cells LiPO and 4C/5C NiMH)
