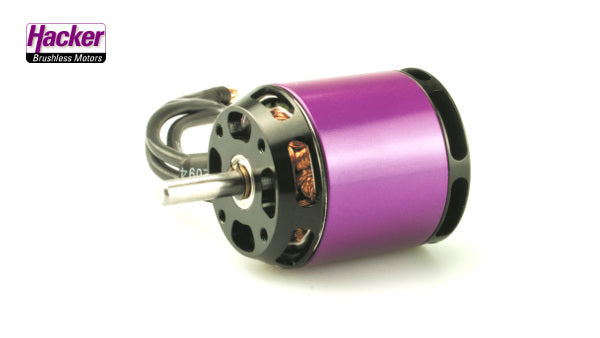

Hacker A30-10XL V4

The Hacker A30 series motors are designed for Larger Parkflyers, 3D Aerobatic, and Scale models from 24oz to 60oz and utliize 2 to 4 series LiPoly batteries. The 14 pole "outrunner" type design creates MASSIVE TORQUE, therefore larger direct drive props can be used without the need for a gearbox. These motors feature oversized bearings, curved neo-magnets, and high-efficiency stator design. The A30 motors produce the most power at lower current consumption than other popular Outrunner designs. We recommend the Hacker X-Series Brushless Controllers for use with the A30 Series Motors For Airplanes up to 4,0 lbs and Gliders up to 7,0 lbs with Prop up to 14 inch

The new V4 Series A30 Brushless provides increased efficiency. Through a newly designed rear end plate and the improved fan a higher power throughput is possible and the continuous load is again improved.

Powerange max. 650W (15 sec.)
Idle Current @ 8,4V 1,9A
Resistance (Ri) 0,024 Ohm
RPM/Volt (kv) 900 U/min-1
Weight 177g
Diameter 37,2 mm
Length 46 mm
Poles 14
recom. Speedcontroler 55A Brushless
recom. Timing 20° - 25°
Shaft Diameter 5 mm
