Hacker  |  SKU: 97100009  |  Barcode: 4250320200130

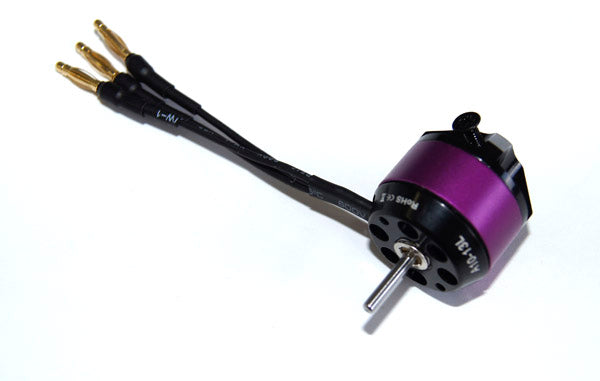

Hacker A10-9L 1700kv

£51.99
Tax included Shipping calculated at checkout.

Description

The A10 motors are smalle outrunner of our series and provides great efficiency and light weight.

They’re ideal for small electric airplanes up to 200g (7oz). Featuring a Slotted 12-pole outrunner design. The Curved Neodym-Magnets offer a perfect gap from the inside of the rotor for optimal power and efficiency

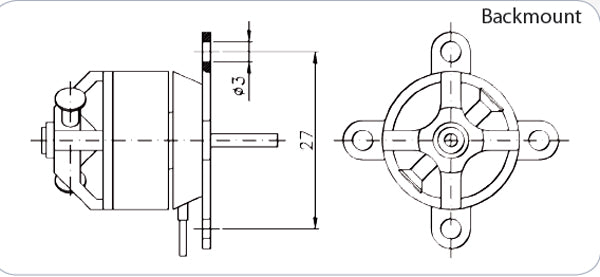

The Backmount from Aluminium and Fiberglas, Prop adapter for GWS, STO and APC-Props with needed O-Rings and all screws are included.The motors are available in different Lengths and Windings.

Specifications

Powerange max. 75W (15 sec.)
Idle Current @ 8,4V 0,72A
Resistance (Ri) 0,18 Ohm
RPM/Volt (kv) 1700 U/min-1
Weight 20g
Diameter 21 mm
Length 25 mm
Poles 12-Pole Outsiderunner
recom. Speedcontroler 4A to 7A Brushless
recom. Timing 20° - 25°
