Graupner BRUSHLESS GM PRO 13.5T 97303
£59.99
Unit price
/
Unavailable
Tax included
Shipping calculated at checkout.
Graupner BRUSHLESS GM PRO 13.5T 97303 will be backordered from our supplier. Delivery will take between 3-5 working days & orders will be despatched once completed.
Sign up to be the first to know when this product is back in stock!
Description
Description

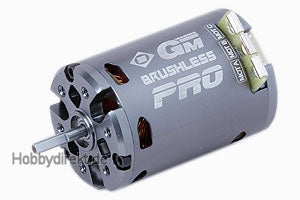

BRUSHLESS GM PRO 13,5T star wound metall Graupner 97303 Description
BRUSHLESS PRO
Lighter, only weighs approx. 170 g
Shorter, for optimum weight distribution
Optimum cooling
Extra thick multi-windings
Sintered neodymium magnets
Sensors conforming with IFMAR/EFRA/DMC rules
Angled sensor connector for better protection
EFRA and DMC legal
High-performance free-running ballraces
Sensorless running possible with GM-BRUSHLESS speed controllers
5 possible motor timing positions
Specification
Magnet : gesintert 12,5 mm
Operating voltage range : 3,7 ... 7,4 V
Overall length, approx. : 68 mm
All-up weight, approx. : 170 g
Transmission: 1:10 Tourenwagen 1:6 ... 1:9 Off-Road 1:9 ... 1:12
Turns : 13,5 T stern
Charging rate at max. output at nominal voltage : 100 A
LiPo battery, Order No. : 98996 - 98998
Free shaft length: 15 mm
Recommended controller: 97163
Max. output at nominal voltage: 320 W
Number of poles: 2
Charging rate at max. efficiency: 33 A
Permissible motor direction : R und L
Nominal voltage: 7,4 V
Case length: 51,5 mm
Shaft diameter: 3,17 mm
Case diameter: 35,8 mm
Revolutions/Volt: 2600
BRUSHLESS PRO
Lighter, only weighs approx. 170 g
Shorter, for optimum weight distribution
Optimum cooling
Extra thick multi-windings
Sintered neodymium magnets
Sensors conforming with IFMAR/EFRA/DMC rules
Angled sensor connector for better protection
EFRA and DMC legal
High-performance free-running ballraces
Sensorless running possible with GM-BRUSHLESS speed controllers
5 possible motor timing positions
Specification
Magnet : gesintert 12,5 mm
Operating voltage range : 3,7 ... 7,4 V
Overall length, approx. : 68 mm
All-up weight, approx. : 170 g
Transmission: 1:10 Tourenwagen 1:6 ... 1:9 Off-Road 1:9 ... 1:12
Turns : 13,5 T stern
Charging rate at max. output at nominal voltage : 100 A
LiPo battery, Order No. : 98996 - 98998
Free shaft length: 15 mm
Recommended controller: 97163
Max. output at nominal voltage: 320 W
Number of poles: 2
Charging rate at max. efficiency: 33 A
Permissible motor direction : R und L
Nominal voltage: 7,4 V
Case length: 51,5 mm
Shaft diameter: 3,17 mm
Case diameter: 35,8 mm
Revolutions/Volt: 2600
