Duel Sky | SKU:
DUA108
Sold out

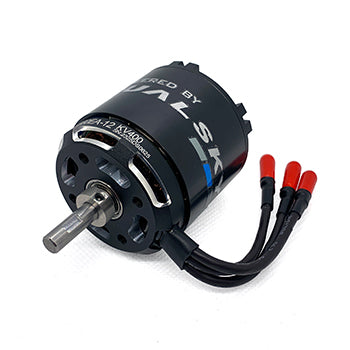

Dualsky XM5060EA-12 (400KV) V3 Brushless Motor
£129.95
Unit price
/
Unavailable
Tax included
Shipping calculated at checkout.
Dualsky XM5060EA-12 (400KV) V3 Brushless Motor will be backordered from our supplier. Delivery will take between 3-5 working days & orders will be despatched once completed.
Sign up to be the first to know when this product is back in stock!
Description
Description
EA V3 Features:
- New appearance,new design all parts,parts strength and heat dissipation channel to further enhance.
- With a wider arc magnet,Japanese 0.20mm silicon steel laminiation,providing strong torque.
- Rotor dual balancing process,NMB bearings,smooth acceleration and deceleration,can bear a higher speed.
- It adopts 220-class enamelled wire and the high-temperature epoxy,with a five-star overload resistance grace.
- Multi-purpose design to support both-end installation namely: Firewall Front installation(default) and firewall back installation.
- For application level optimisation of KV value, avoid complex overlap
Specification
| Motor Name | XM5060EA-12 V3 |
|---|---|
| KV | 400 |
| Weight (g) | 393 |

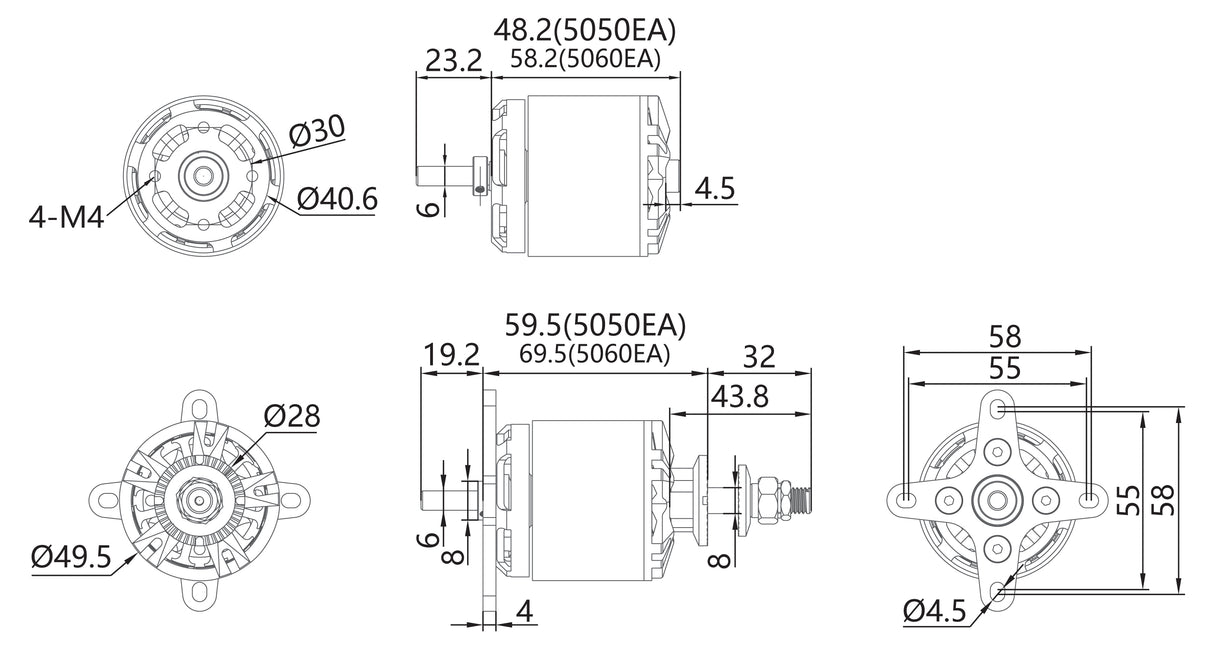

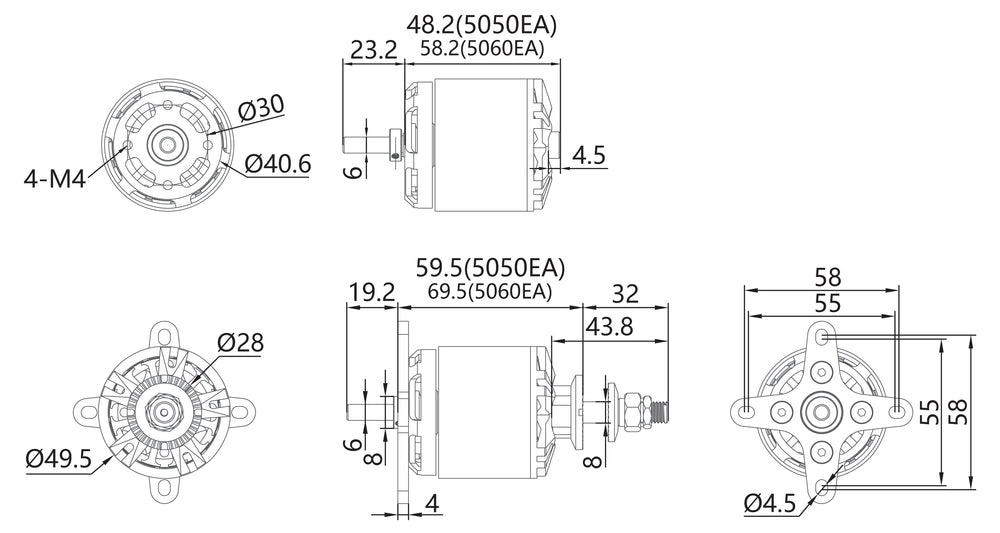

| Dimensions (D x L) (mm) | 49.5 x 58.2 |
| Diameter of Shaft (mm) | 6.0 |
| Spec. of Mounting Holes | 4-M3, 30/30 |
| Input Connectors | DB4 |
| Dimensions of Stator (mm) | 4130 |
| Slots & Poles | 12N14P |
| Ri(mOhm) | 18.5 |
| Io@10V (A) | 1.4 |
| No. of Cells (LiPo) | 61 |
| Efficiency Current (A) | 42.5 |
| Burst Current (15S) (A) | 85 |
| Peak Power (15S) (W) | 2040 |
| Peak Torque (N-M) | 2.54 |
| Recommended ESC | Summit 100 |
| Recommended Propeller | 6S: 16 x 12E, 17 x 10E, 17 x 12E |
| Application | 90E, .75-.90 2-Stroke up to .110 4-Stroke |
