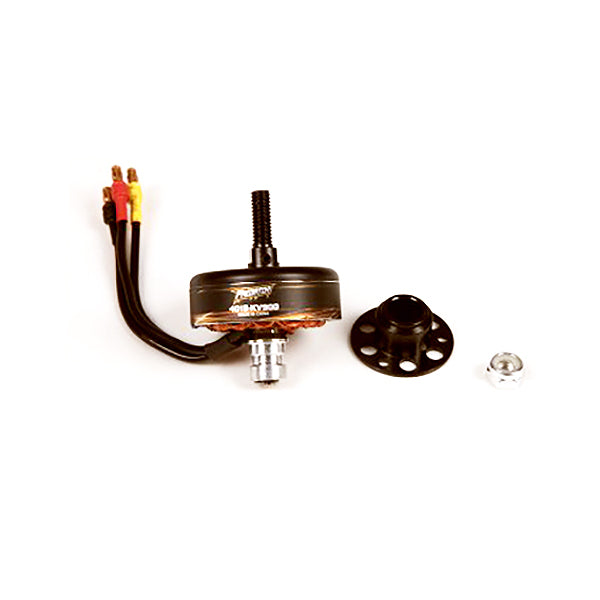

FMS BRUSHLESS MOTOR 3948-900Kv (DAGO RED)
FMS BRUSHLESS MOTOR 3948-900Kv (DAGO RED) will be backordered from our supplier. Delivery will take between 3-5 working days & orders will be despatched once completed.
Sign up to be the first to know when this product is back in stock!
Description
Description
Specifications
Dimension (mm): 41.14 x 54
Weight (not Including Connectors): 86.5g
Voltage (S): 3
Max Free Load Current (A): 1.8
Length Of Front Shaft (mm): 20
ESC: 20-30A
Lamination Thickness (mm): 6.65
Magnet Type: N45H
KV (rpm/v): 900
Max Fan Load Current: 30
Resistance: 0.039
Max Voltage: 13V
Power (W): 320W
Shaft A (mm): M4
Lenght B (mm): 38.2
Diameter C (mm): 41.15
Can Length D (mm): 10.4
Total Length E (mm): 54
