Aeronaut Triple Speed Kit

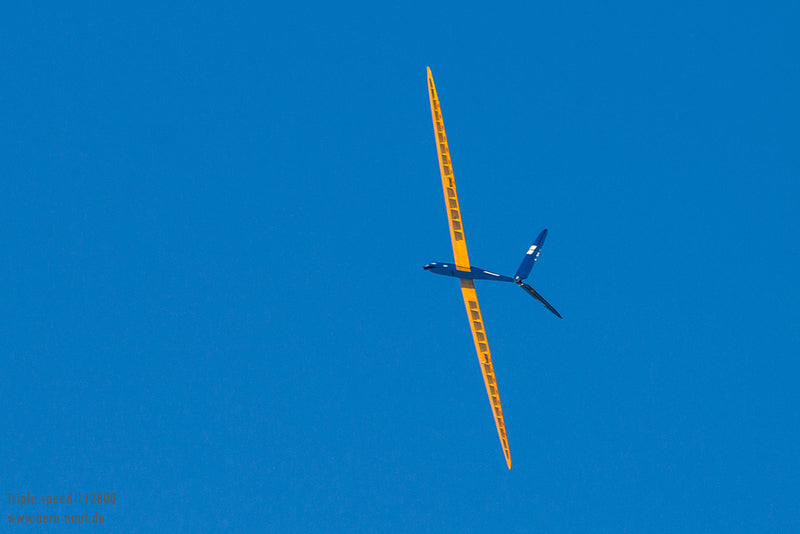

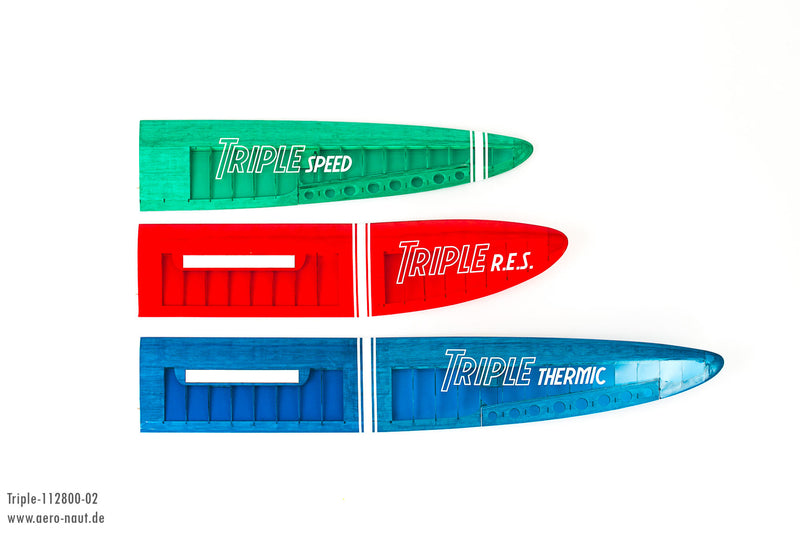

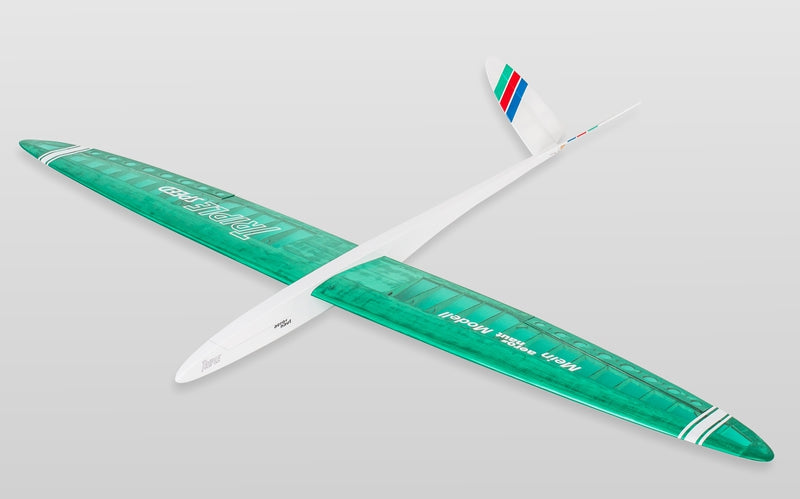

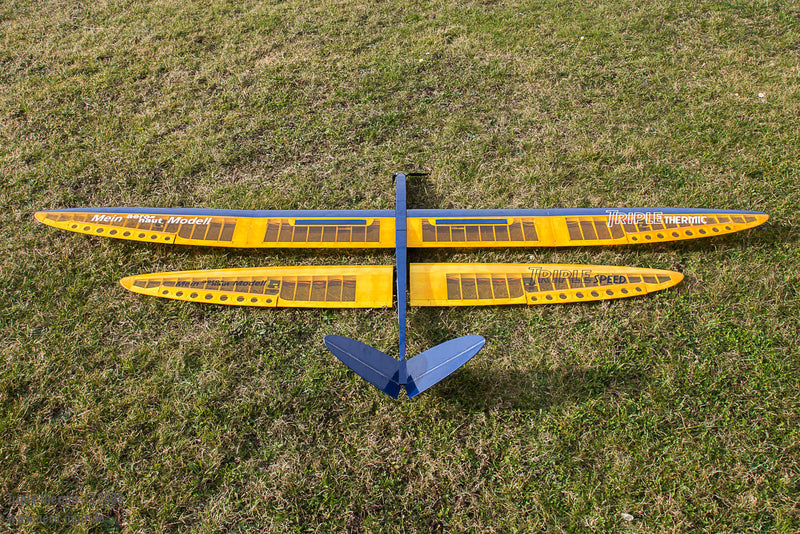

Sail comfortably in the thermal, take off on a rubber rope and take part in a RES competition or celebrate brisk aerobatics - all of this is possible with “Triple”. This completely newly developed model concept offers a shapely fuselage with V-tail (to be built either as a glider or as an electric glider - both versions are included in the kit) and three different spans. All wings can be attached to the fuselage at will. Without any tools, with a strong magnetic lock. This means that a quick change is also possible on the flight site. "Triple speed" has a wingspan of 178 cm, a simple V-shape and long ailerons. The profile has a straight underside and enables rapid flights and wonderful glider aerobatics. "Triple RES" has a wingspan of 199 cm and a higher V-shape than the "Triple thermic". In accordance with the RES competition regulations, the model is only controlled via rudder, elevator and spoilers. "Triple thermic" has a wingspan of 255 cm and is equipped with ailerons and spoilers. The profile is designed for thermal flights and gives the model good-natured and powerful flight performance.

The slender hull of the sailor offers the best aerodynamic properties. The electric hull is only a little wider in the front area, can comfortably accommodate 28 mm external rotor motors and offers space for a 3s LiPo up to approx. 2,500 mAh.

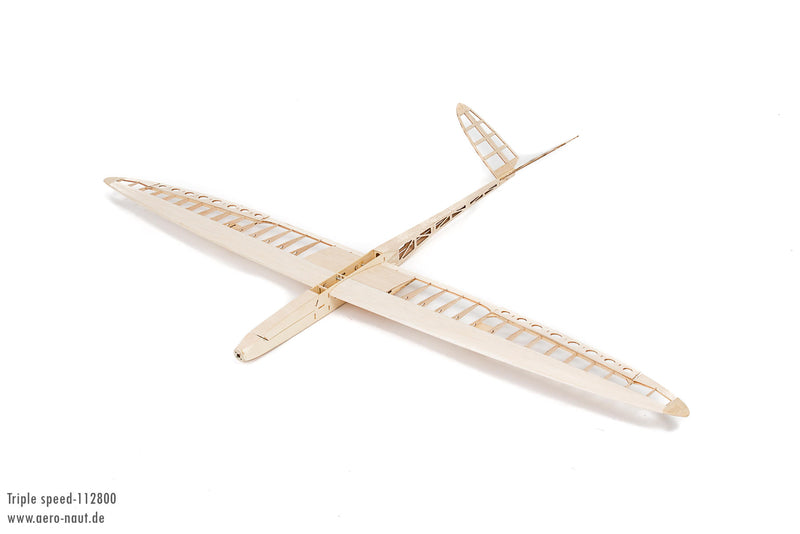

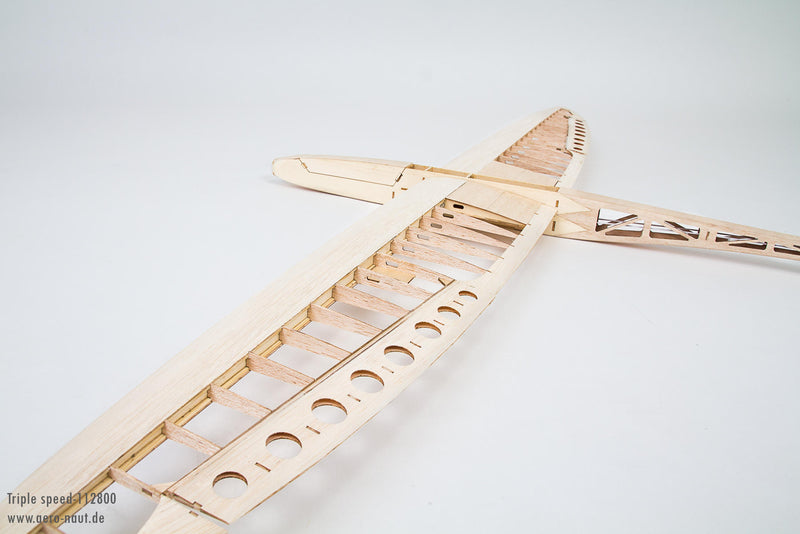

Common to both fuselages is the removable canopy with magnetic lock and a fuselage cover on the underside, behind which the servos for the V-tail are hidden. All models are built entirely in wood and thus follow the aero-naut proven principle of model construction. The hull is constructed from poplar plywood and balsa. The innovative plug-in system enables quick and distortion-free assembly. The V-tail is also put together from laser-cut parts and glued to an extra slipway supplied. The wings are built in rib construction, have continuous pine spars and a box with grooves, so that they can be set up quickly and easily on any level building board. The trailing edge paneling is also grooved so that nothing can be done wrong with the position of the ribs.

The kit is also ideal for youth work and for joint building projects in clubs. The model kit contains all laser-cut wooden parts to build the model, pine bars, rudder linkages and Bowden cables, various small parts.

A detailed illustrated construction manual in the tried and tested aero-naut 3D style leads to quick construction success.


Suggested items required to complete kit (NOT INCLUDED)

Brushless motor28-4-880
ESC 30amp
Folding Prop. 13.0x 6.5 ″
CN spinner 30 / 4.00mm
3s lipo - size 80 x 35 x 25mm
Radio equipment and servos
Covering Material
Adhesive
Modelling Tools etc.

Span [mm] 1,780
Length [mm] 1,220
Wing volume [dm²] 29.5
Weight [g] > 800
