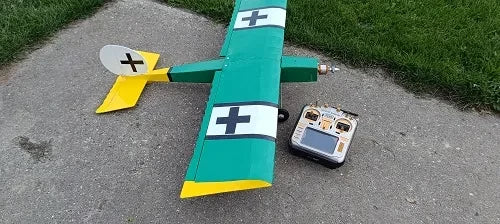

RBC Mini Ugly Stick Kit

A small funflyer for 3S 1300 cells and a small drive and it is flying really good

Cells 3s1300 lipo
Power req :2814/8 1000kv 8x6 prop
Controls: 4x servo
Including: cad drawing,pre bend landing gear
Superb cad drawing lots of build pictures
Wood build precision kit,

Photo instructions here very simple build

All Formers And Ribs CNC Cut
Unique Tab Lock Design
Stick on wings standard  single wing easy possible

Battery Acces through hatch
      Specifications:
Wing Area: 20dm2
Wing Span; 1000 mm
Flight Weight: Starts at 660 grams
Wing Loading: 33gr dm2
4 Channel  Ailerons & Throttle , Stabilzer,Rudder
      Kit Includes:
Full Size Rolled Cad Plans With All Parts Shown


Required to Complete:
Control Horns , Steering wires ,fasteners
4 Channel Radio, servos receiver
Batterys ,Motor ,wheels etc

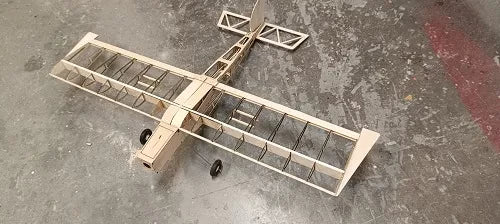

Build pictures.

Build up wing , simple and fast to build ,Build as split or 1 piece

Fuselage easy all tab lock system , straight build on building board

Stabilizer build up very light.

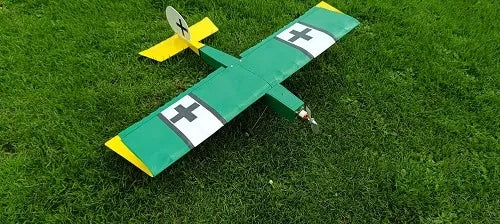

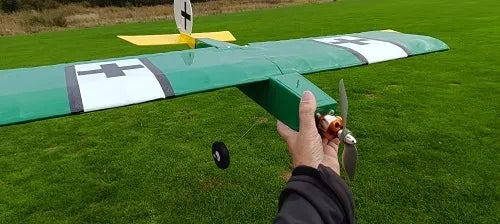

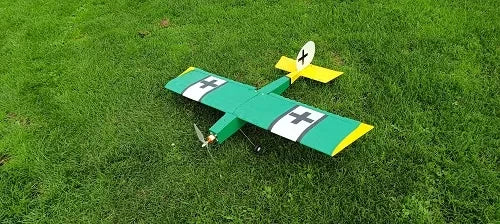

All together, nice woodbuilding .

Split wing with balsa joiner , easy.
