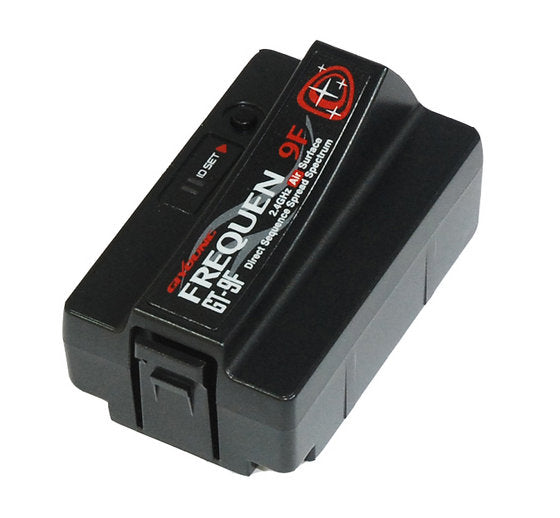

GI Young RC Module 2.4GHz 9Ch GT-9F (Box12)

A : GT-9F can be used for both air and surface.

For example, you can use the 3PK for surface by the transmitter module for FF9 for air.

B : The internal antenna (INTENNA TYPE) of the RF Module provides various advantages

- High high resistance(No concerns about easily broken antenna)

- Very convenient even with a stand installed RF module handle

- Compact and stable because no antenna cable is used.

- Full range of operation (over 3.7km/2.3mile, test condition in open area) is possible with the internal antenna.



C : It functions at fast binding speed and outstanding reaction rate.

The real time process of the PPM signal from the transmitter by digital takes within 5ms

High level users love our products.

(currently the fastest speed for 2.4Ghz transmitter and receiver in the world)

D : It has the buzzer which notifies link via 2-ways communication whenever they bind(pairing)

Specifications
l Band : 2.405 ~ 2.480GHz
l Current consumption : 160mA
l Dimensions : 37 x 61
l Height(A) : 20.6mm
l Height(B) : 33.4.mm
l Weight : 28.3g
l Operating Temperature : (-20°~+60°)
l Voltage Range Input : 9.6V (6.4~14.8V)

Compatible Controller
l Futaba: FF7A, FF9, 10C(air), 3PK(surface)
l Hitec : OPTIC 6, ECLIPSE 7, AURORA 9, (air)
l AGGRESSOR CRX, AGGRESSOR SRX, ECLIPSE PROCAR (surface)
