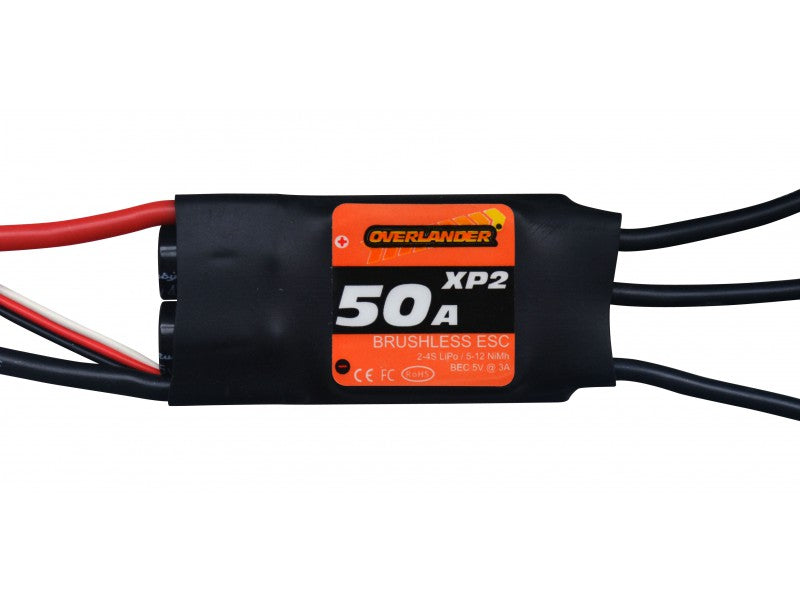

Overlander XP2 50A Brushless ESC

DESCRIPTION

This series of speed controllers have high technology and perfect function. Aiming at none-hall direct current brushless motors, they can set several parameters through program card or key on ESC and are convenient to use.
XP2 50A Brushless speed controller features
► Full protection feature including low voltage, over-heat, throttle signal lost, startup protection and self-check.
► Compatible with most sensor less brushless motors.
► Excellent startup performance, great throttle linear and quick throttle response.
► Support highest motor speed 210,000RPM (2 poles), 70,000RPM (6 poles) and 35,000(12 poles).
► Easy configured with program card.
► System can automatically detect throttle neutral point.
► 3 timing modes can match different motors.
► 3 modes of start force adjustment.
► Governor mode for heli
► Reverse motor direction

SPECIFICATION
► Low resistance PCB
► Input Voltage: Support 2-4 cell Li-Po, 5-12 Nimh
► Continue current: 50A, (Burst max 70A 10 secs)
► BEC output: 3A/5V
► Dimensions: 60x28x8 mm
► Weight: 38g
► Blue Motor Wire 14AWG
► Red and Black Battery Wire 12AWG

Manufacturers recommend Servo numbers to be limited to 1 servo per 1A of BEC. At Overlander we say you should consider a separate RX pack or uprated UBEC when using 4 servos or more
