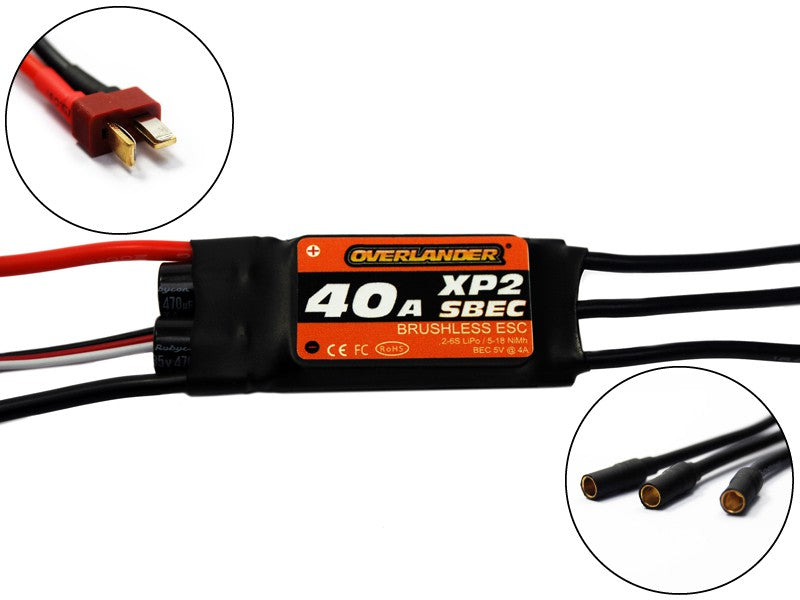

Overlander XP2 40A SBEC Brushless ESC - RTF - SKU 2722

Overlander XP2 40A SBEC Brushless ESC - RTF Speed Controller
READY TO FLY! Now fitted with Deans connector for the battery and 3.5mm gold connectors for the motor!

DESCRIPTION
This series of speed controllers have high technology and perfect function. Aiming at none-hall direct current brushless motors, they can set several parameters through program card or key on ESC and are convenient to use.
XP2 SBEC 40A Brushless speed controller features
► Full protection feature including low voltage, over-heat, throttle signal lost, startup protection and self-check.
► Compatible with most sensor less brushless motors.
► Excellent startup performance, great throttle linear and quick throttle response.
► Support highest motor speed 210,000RPM (2 poles), 70,000RPM (6 poles) and 35,000(12 poles).
► Easy configured with program card.
► System can automatically detect throttle neutral point.
► 3 timing modes can match different motors.
► 3 modes of start force adjustment.
► Governor mode for heli
► Reverse motor direction


SPECIFICATION
► Low resistance PCB
► Input Voltage: Support 2-6 cell Li-Po, 5-18 Nimh
► Continue current: 40A, (Burst max 55A 10 secs)
► BEC output: 4A/5V
► Dimensions: 68 x 25 x 12 mm
► Weight: 42g
► Blue Motor Wire 14AWG
► Red and Black Battery Wire 12AWG


Manufacturers recommend Servo numbers to be limited to 1 servo per 1A of BEC. At Overlander we say you should consider a separate RX pack or uprated UBEC when using 4 servos or more

Continuous:40A SBEC
Max Burst (10 sec):55A
LiPo Cells:2-6
BEC Output:4A
BEC:Switching BEC
Connector:Deans
