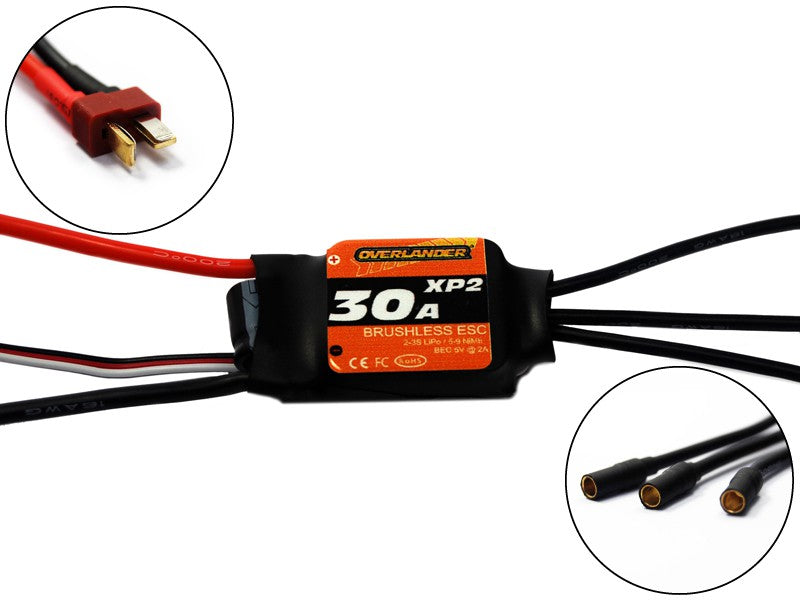

Overlander XP2 30A Brushless ESC - RTF - SKU 2724

Overlander XP2 30A Brushless ESC - RTF Speed Controller

READY TO FLY! Now fitted with Deans connector for the battery and 3.5mm gold connectors for the motor!



DESCRIPTION

XP2 30A Brushless speed controller features
► Full protection feature including low voltage, over-heat, throttle signal lost, startup protection and self-check.
► Compatible with most sensor less brushless motors.
► Excellent startup performance, great throttle linear and quick throttle response.
► Support highest motor speed 210,000RPM (2 poles), 70,000RPM (6 poles) and 35,000(12 poles).
► Easy configured with program card.
► System can automatically detect throttle neutral point.
► 3 timing modes can match different motors.
► 3 modes of start force adjustment.
► Governor mode for heli
► Reverse motor direction

► Low resistance PCB
► Input Voltage: Support 2-3 cell Li-Po, 5- 9 Nimh
► Continue current: 30A, (Burst max 40A 10 secs)
► BEC output: 2A/5V
► Dimensions: 42 x 25 x 8 mm
► Weight: 23g
► Blue Motor Wire 14AWG
► Red and Black Battery Wire 12AWG
