Tamiya TT-02 TYPE SRX CHASSIS KIT NO ESC OR MOTOR

1/10 R/C TT-02 Type-SRX Rolling Chassis Kit

Tamiya is proud to welcome a new addition – TT-02 Type-SRX Chassis Kit - to the TT-02 Type-S Series which

is popular among both beginners and race users. The TT-02 Type-SRX chassis kit is an upgraded version of the

TT-02 Type-S Series with enhanced durability and performance for racing. This chassis kit uses Items 22049 and

22047 with updated parts. Also, parts included in this chassis kit are chosen (more cost-effective than buying

each part) for users who want to learn setup before levelling up to middle class chassis.

★ Included Hop-up Option Parts ★

Item 22054: 37mm Drive Shafts for Double Cardan Joint Shafts (2pcs.)

Item 22049: XV-02/TT-02 Oil Gear Differential Unit

Item 22047: XV-02/TT-02 Front Direct Coupling Set (39T)

Item 54981: 06 Module Hard Coated Aluminum Pinion Gear (27T)

Item 54886: TRF419 Suspension Upgrade Set

Item 54799: TT-02 Hi-Torque Servo Saver Set (w/Aluminium Horn)

Item 54501: TT-02 Aluminium Propeller Shaft

Item 54500: TT-02 High Speed Gear Set (68T)

Item 53823: Clamp Type Aluminium Wheel Hub (5mm Thick)

Item 53576: TRF Damper Oil Seal (4pcs.)

Item 42357: Cross Joints for Low Friction Assembly Universal Shafts

Item 42323: Short Ball Connector Nuts for TRF Dampers (8pcs.)

Item 42143: 4mm Aluminium Serrated Wheel Nut (4pcs./Blue)

About the Model

• This is a 1/10 scale R/C chassis assembly kit.
• Items 22049 (*1) and 22047 (*2) ensure ease of assembly and stable drivability.

*1: Diff. joint cups are lightweight aluminium, and give a weight reduction of 7.8g compared to Item 22049’s

standard ones.

　 *2: Direct cups are designed for this chassis kit for improved durability.

• This chassis kit features reliable 4-wheel independent double wishbone suspension from Item 42345 (1/10

R/C TRF420 Chassis Kit) for effective setup.

• Newly shaped propeller joints are compatible with swing shaft protectors, and these parts have plastic parts

at joint sections of stainless pins and aluminium joints to limit wear of parts.

• Uses Item 22054 which allows stable steering and cornering for superior performance at races.
• Rear drive shafts are 39mm size which are specific for this chassis. These also have a hard coat to enhance

durability and lubricity.

• High speed gears and 27T pinion gears (gear ratio: 6.55: 1) are included as the kit-standard parts.
• TT-02 hi-torque servo saver gives steering angle to limit damage of steering and servo.
• Features full ball bearings.
• Comes with a carrying case dedicated for the TT-02 Type-SRX chassis.
• Please note that body, battery pack, motor, tyres and R/C equipment are not included

No Motor or ESC Included

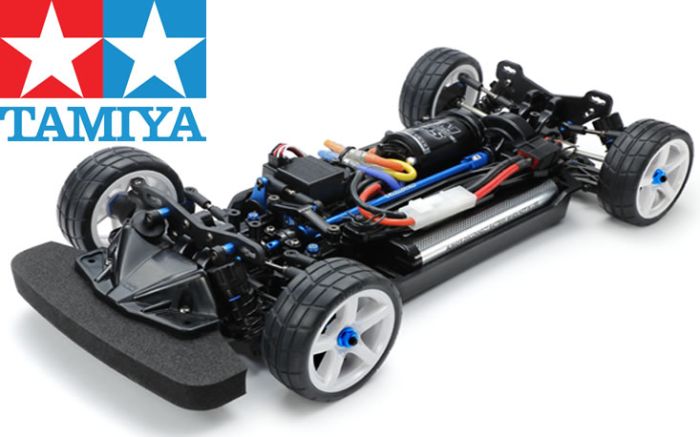

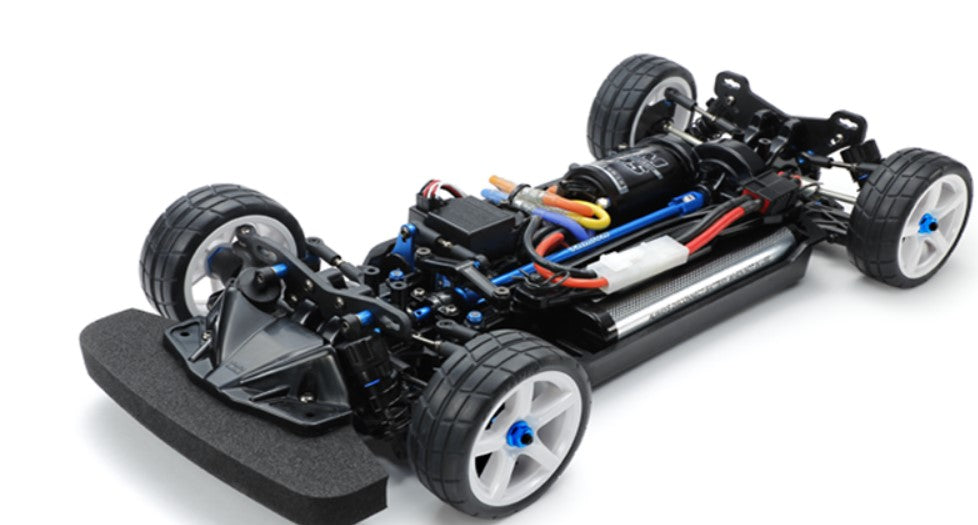

Servo, motor, ESC and battery are not included (as shown in image)

Additional items are required for this product
